Bindapt+ 2.0 Automate

Price

$1,700.00

Bindapt+ 2.0 – The Universal Grain Bin Monitoring & Automation System
Easily self-installed and adaptable to any grain bin—any size, make, or model—Bindapt+ 2.0 is a modular, connected solution that monitors your inventory 24/7 and powers intelligent automation for drying, cooling, and hydration.

Recognized among the best grain bin monitoring systems, it provides unmatched precision and reliability.

Quantity

Description

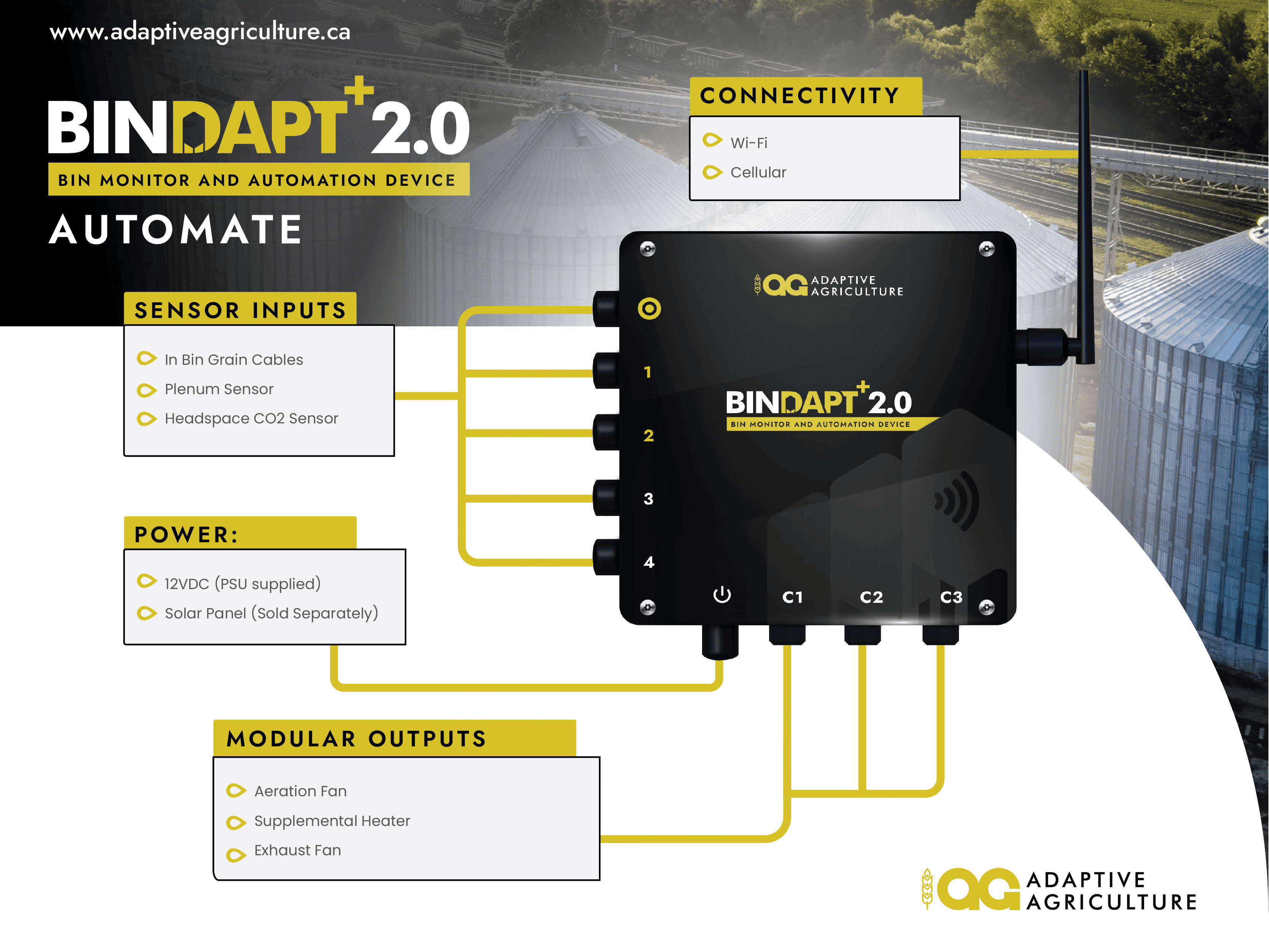

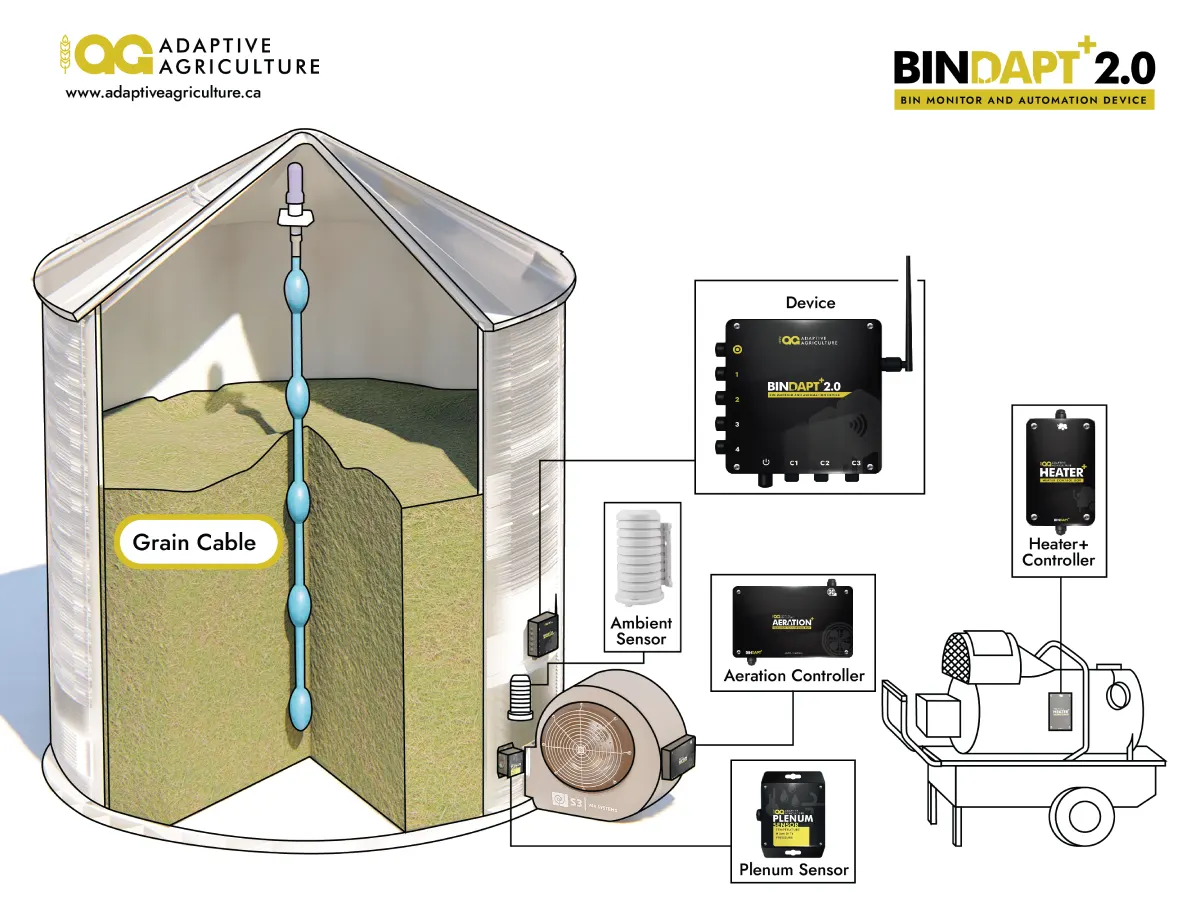

Supported Sensors:

1. In-Bin Grain Cables (Temp & Moisture):

Monitor grain condition through grain temperature monitoring systems and enable automated drying and hydration processes.

2. Headspace CO₂ & Laser Level Sensor:

  • CO₂ Alerts: Detect spoilage risk up to 10 days before traditional temperature cables.
  • Laser Inventory: Tracks grain levels with 1 cm accuracy to support operations and sales planning.

3. Ambient Sensor (Temp & RH):

Measures outside air conditions to inform drying and hydration indices and enable automation based on environmental conditions.

4. Plenum Sensor (Temp, RH & Static Pressure):

Installed between the fan and bin, it enables:

  • Advanced Analysis Charts: Visualize Drying vs. Hydrating, Water Content, and Moisture Trends.
  • Supplemental Heat Control: Regulates construction heaters to extend drying into cooler seasons.
  • Fan Performance Monitoring: Converts static pressure to CFM and CFM/bu to assess airflow efficiency.

Supported Control Modules:

1. Heater+ Module:

Controls construction heaters for supplemental drying. Requires Plenum Sensor and Adapter Plate.

2. Exhaust+ Module:

Automates exhaust fans to reduce headspace humidity—especially useful for oilseeds. Works with Grain Cable Top-Node or Headspace CO₂/Temp/RH sensor.

3. Aeration+ Module:

Automates fan operation for natural air drying, cool-down, and hydration. Ambient Sensor is required; Plenum Sensor recommended for validation and enhanced accuracy.

Bindapt+ 2.0 Automate stands out as an advanced grain bin temperature monitoring system designed to give operators full control over grain quality, efficiency, and safety, all in one intelligent platform.

Get our help with a bin yard quote!

Answer The Bin Yard Questionnaire and Get Personalized Quote!

Frequently asked questions

How does the Bindapt+ 2.0 system improve grain storage management?

By integrating temperature, humidity, CO₂, and pressure sensors, the system provides precise data to prevent spoilage and energy waste. This advanced grain bin temperature monitoring system helps you make data-driven decisions for drying and aeration control.

What types of sensors are supported by Bindapt+ 2.0?

The system supports a wide range of sensors, including in-bin grain cables for temperature and moisture, headspace CO₂ and laser level sensors, ambient sensors for temperature and relative humidity, and plenum sensors for static pressure. Together, they deliver a complete grain temperature monitoring system for accurate analysis.

Is the system easy to install and maintain?

Absolutely, Bindapt+ 2.0 is designed for simple, self-installation and long-term reliability with minimal maintenance.

Does this system work for different grain types and bin sizes?

Yes, the advanced grain bin temperature monitoring system is adaptable to any grain bin—regardless of size, make, or model—and supports various grain types.

Is Bindapt+ 2.0 compatible with remote monitoring?

Yes. The system provides cloud connectivity, enabling you to track bin conditions and adjust automation settings remotely. It’s designed to deliver complete visibility and control from your smartphone, tablet, or desktop.
